Product Details:
|
Product Name: | Glass Wool Sandwich Panel | Width Of Wall Panel: | 950mm / 1150mm |
---|---|---|---|
Width Of Roof Panel: | 960mm / 1050mm | Length: | Customized , ≤11.8m |
Thickness: | 50-200mm | Core Density: | 40-50kg/m3 |
Steel Sheet Thickness: | 0.286-0.6mm | Application: | Apartment, Office Building, Hospital, School, Mall |
Fireproof Grade: | A1 | Color: | Grey White,Red,Blue,Wooden Color,Brick Design Etc |
Plac Of Origin: | Foshan,Guangdong,China | Certification: | ISO9001-2008 |
Life Span: | 15-20 Years |

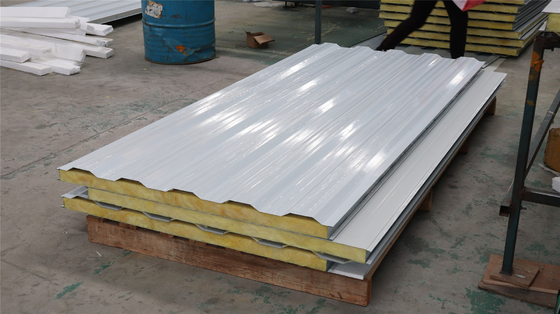

Corrugated Steel Glass Wool Sandwich Wall Panel Fireproof Glass Wool Sandwich Wall Panel For Prefab House
Glass Wool Sandwich Panel is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, garage, shop, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
Product Description
Product Name
|
Glass Wool Sandwich Panel
|
Density of eps
|
40-50kg/m3
|
Effective width
|
950mm/1150mm For Wall Panel, 960mm/1050mm For Roof Panel
|
EPS core thickness
|
50mm,75mm,100mm,150mm,200mm
|
Steel thickness
|
normal:0.286-0.6mm
|
Length
|
According to customer's request, but if container transportation,normal less 11.8m
|
Color
|
China red,seablue,whitegrey,as customized
|
surface material
|
PPGI steel, GI steel ,PPGL steel ,GL steel,stainless steel
|
The thermal conductivity
|
0.038W/M.K
|
Water absorption
|
≤6%
|
The compression strength
|
≥69KPa
|
Fire proof
|
A1
|
Dimensional stability(70℃,48h)
|
≤5%
|
Application temperature
|
-20℃-75℃
|
Wall Grace finish
|
Embossment,big rib,flat finish
|
Package
|
standard seaworthy exporting package,plastic thin film package and Wooden pallets
|
Transport
|
By sea
|
Features
1) sandwich panel used in large industrial plants, warehouses, supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.
2) sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction.
3) in the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials.
