Product Details:
|
| Product Name: | Detachable Container House | Dimensions: | 5950mm(L) X 3000mm(W) X 2800mm(H) |
|---|---|---|---|
| Instulation: | EPS Sandwich Panel, Glass Wool Sandwich Panel, Rock Wool Sandwich Panel, PU Sandwich Panel | Door: | Steel Composite Door |
| Window: | Aluminum Alloy Window Or PVC Window | Color: | White, Blue, Blue Brick, Red Brick, Wooden Color, Etc.. |
| Loading: | 15 Units/ 40HQ | Application:: | Office, Labor Camp, Domitory, Family House, Etc.. |
| High Light: | Steel Composite Door Detachable Container House,40HQ Detachable Container House,Fast Assemble 40HQ Detachable Container Houses |
||

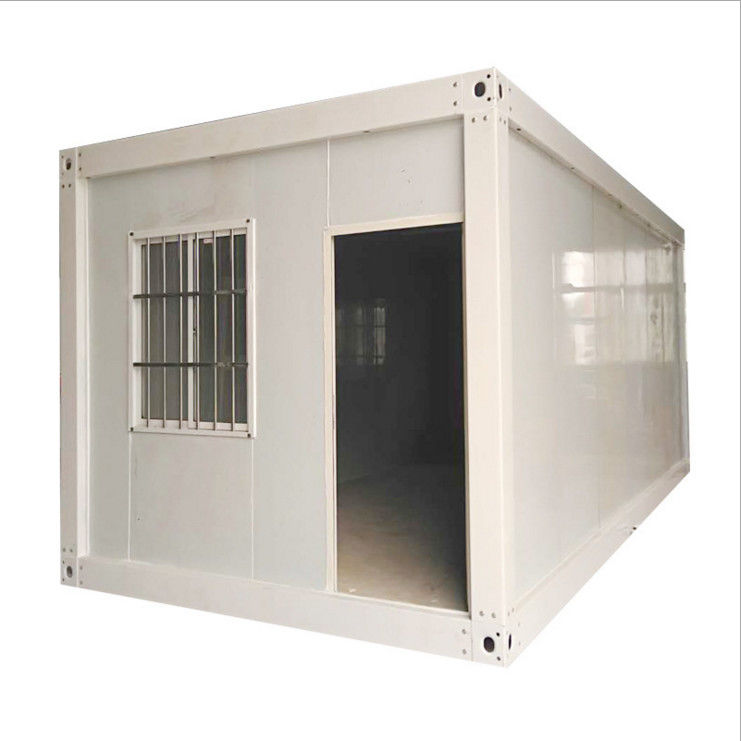

High Quality 20ft Detachable Container House With ISO Standard
Detachable container house is a new generation of prefab house. It is a whole unit itself. Which can be use as single portable house. or combined laterally or place with layers.
Detachable container house can be connected by bolts, with easy installation and fast transportation. Detachable container house is widely use for office, labor camp, modular hospital,resettlement housing,farming, etc.
Technical Information Of Detachable Container House
| Technical Parameter | ||||||
| No. | Iitem | Parameter | No. | Iitem | Parameter | |
| 1 | Roof load | ≧0.5KN/㎡ | 6 | Wall deformation | ≦300kilograms/m2 | |
| 2 | Flooring load | ≧2.5KN/㎡ | 7 | Seismic grade | 9-magnitude | |
| 3 | Aisle load | ≧2.5KN/㎡ | 8 | Wind loading | 12 level of wind loading | |
| 4 | Wall side stress | ≧1.8KN/㎡ | 9 | Interior dimension | 5800x2850x2600mm | |
| 5 | Fire proof | A Grade | 10 | Service life of structural design | ≧15 Years | |
Main Frame of Detachable Container House
| No. | Component Name | Materials | Thickness | specifications(mm) | ||
| 1 | Pillar | Cold formed galvanized steel plate | 2.5mm | 2480mmx4 | ||
| 2 | Top beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 3 | Bottom beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 4 | Side beams | Cold formed galvanized steel plate | 2.5mm | 2680mmx4 | ||
| 5 | floor purlin | Bottom secondard beam 1 80x80mm |
1.5mm | 2980mmx4 | ||
| Bottom secondard beam 2 40x80mm |
1.5mm | 2980mmx5 | ||||
| 6 | corner fitting | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | ||
| 7 | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | |||
Packing and Loading
Reference Project Case
Desuman Factory Information
FAQ
Q1. Are you a factory or trading company?
A1. Foshan Desuman Building Materials Technology Co.,ltd. is a factory located in Nanhai district, Foshan City, Guangdong province, China.
Q2. What products you have?
A2. We have several products series, including: sandwich panels, modular house, container house, light steel villa, steel structure warehouse/ workshop, steel floor decking, etc…
Q3. How to install?
A3. We will provide installation instruction for you, technicians will be sent to help you if it is necessary. However, the visa fee, round plane tickets, accommodation fee, and wages will be provided by buyers.
Q4. How long is your delivery time?
A4. Generally it is within 2-30 days, definitely according to quantity and color.
Q5. How do you guarantee the quality of the products?
A5. Strict product quality control, quality makes the future. This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.
Q6. How can I get quotation of project?
A6. If you have drawing, we can offer you our quotation according to your drawing. If you have no design, we can make design according to your req- uirements and quote it, but will collect design fee first, once you place order the design fee can be deduct from the order amount.
