Product Details:
|
Product Name: | EPS Sandwich Panel Partition Wall Panel | Length: | Any Length Of Your Want,but Is Better No More Then For 11.8 Meter For Transport |
---|---|---|---|
Width: | 950/1150 For Wall Panel | Thiskness: | 50-200 Mm |
Eps Foam Density: | 8-25 Kg/m3 | Color Steel Sheet Thickness: | 0.2-0.6 Mm |
Panel Material: | Metal | Application: | Apartment, Office Building, Hospital, School, Mall |
Fireproof Grade: | B1 / B2 | Color: | Grey White,Red,Blue,Wooden Color,Brick Design Etc |
Plac Of Origin: | Foshan,Guangdong,China | Certification: | ISO9001-2008 |
Lifetime: | 10-20 Years |
Low Cost Prefabricated House EPS Sandwich Panel Partition Wall Panel
Eps sandwich panel Features:
1. Light weight enough to reduce building expense.
2. Energy conservation, environmental protection, economical, heat insulting, good structure, easy-doing construction.
3. Advanced Tech: Automatic Italian rolling machines make the whole process of manufacture effective.
4. Waterproof, anti-corrosion, good chemical resistance, insect-free etc.
5. Heat and sound insulation. Temperature suitable for eps sandwich panel ranges from -30 centigrade to 75 centigrade.
6. Time can be saved on a building project due to the simple installation.
7. Our sandwich plates are sold to around the world,.According to the requirements of your project, we can offer you with best price.
Product infomation Waterproof,High quality, attractive appearance,heat insulation,practical use |
|
Name | Low Cost Prefabricated House EPS Sandwich Panel Partition Wall Panel |
Effective width |
Wall panel: 950/1150 mm Roof panel: 960/1050 mm |
Length | As per requirement considering the transportation sonstraints |
materials | Eps, Color steel sheet |
Structure |
Upper and lower layer: Color steel sheet Middle: eps foam |
Thickness | Color steel sheet: 0.2-0.6mm Eps foam: 50mm 75mm 100mm 125mm 150mm 200mm |
The eps density | 8-20kg/m3 |
Steel sheet color | Ivory white, off white , sea blue, sky blue, lotus green, Grey brick, marble and wooden grain, bright red, etc… |
lifetime | 15-20 years |
The thermal coductiity | 0.038W/M.K |
Installation | Tongue and groove |
Use | Wall /ceiling/roof |
Trankport | Bye sea |
Application |
Various roofs and walls referring to the large size factory buildings, storage, exhibition halls, gymnasiums ,Purifying factory, combined house, etc. |
Product Advantage:

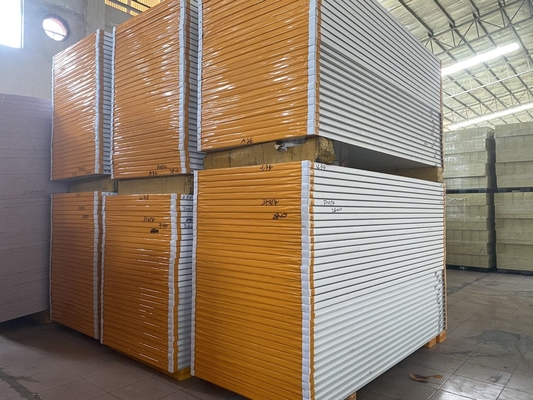

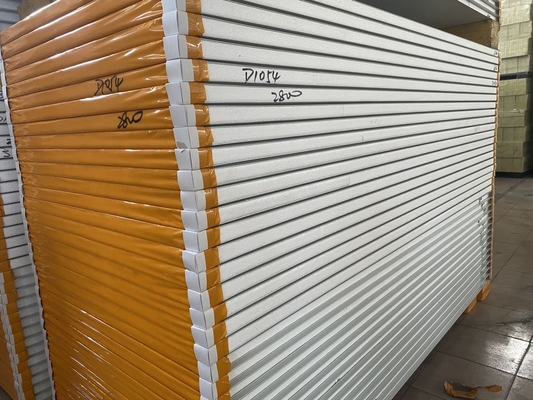

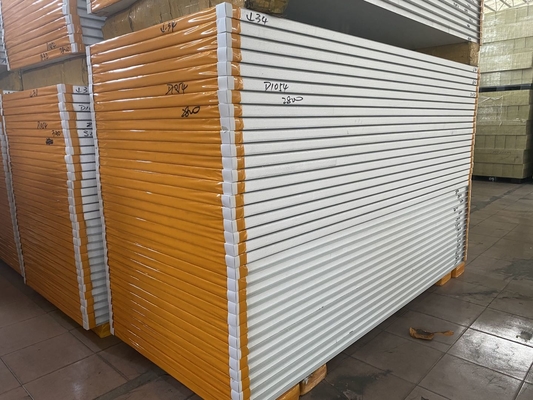

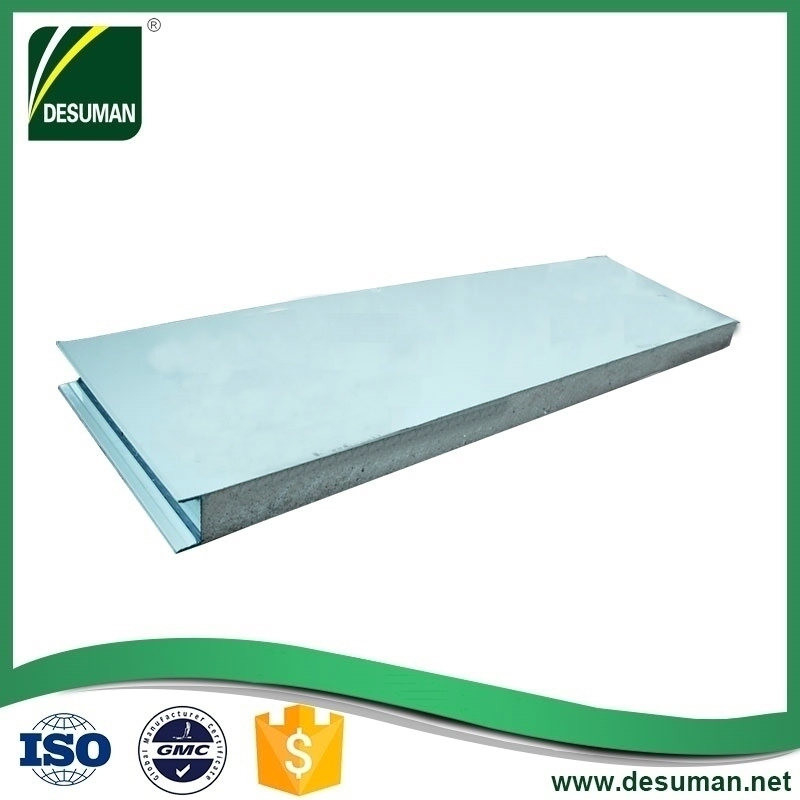

Product display:
Advantage of the different sandwich panels:

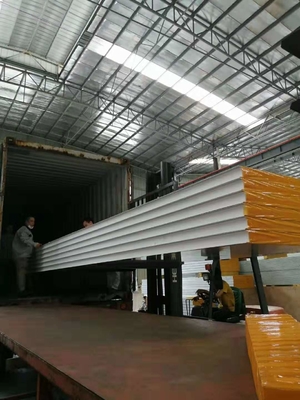

Packing and loading:
Eps sandwich panel application:
Our company:
Foshan Desuman Building Materials Technology Co.,Ltd .
We are a professional manufacturer of sandwich panel products and we have our own facotry and trade team .
We are engaged in designing, manufacturing, building and marketing for sandwich panel products , detachable container houses and pref-abricated houses. Our main products includes prefabricated house,modular house, steel structure warehouse and related construction products etc.
We have succeeded in passing ISO9001:2008 Enterprise Quality Management Authentication.
We could design and build living house,office building,dormitory and other residential & commercial constructions,achieving
perfect combination of industrial technique and social function.
We pay great attention to keep improvement to the current products, as well as developing new updating styles to satisfy the
market demand.We sincerely hope to join hands with our clients to create a better future in principle of win-win cooperation!
