Product Details:
|
| Dimension: | 3000x5950x2800mm | Steel Frame: | Q235 Grade |
|---|---|---|---|
| Wall Panel: | 50mm Rock Wool Sandwich Panel | Floor Board: | 18mm Fiber Cement Board |
| Loading Qty: | 15 Units/40HQ | Weight: | 1250 KG/Unit |
| High Light: | Detachable Container House 20ft,Rock Wool Sandwich Container House 20ft,Q235 Steel Container House 20ft |
||
External Size | 5950mm(L)*3000mm(W)*2800mm(H) | ||
Internal Size | 5800mm(L)*2800mm(W)*2550mm(H) | ||
Roof Board | Insulation board with corrugated Steel Plate | ||
Wall Panel | 50mm/75mm thickness Panel | ||
Floor | 18mm Mgo Board | ||
Door | 930mm*2000mm | ||
Window | W930mm*H1200mm PVC/Aluminum alloy | ||
Frame | Q235 steel | ||
Material | All Steel Galvanized + baking varnish | ||
Main Materisl of Detachable Container House
| No. | Component Name | Materials | Thickness | specifications(mm) | ||
| 1 | Pillar | Cold formed galvanized steel plate | 2.5mm | 2480mmx4 | ||
| 2 | Top beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 3 | Bottom beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 4 | Side beams | Cold formed galvanized steel plate | 2.5mm | 2680mmx4 | ||
| 5 | floor purlin | Bottom secondard beam 1 80x80mm | 1.5mm | 2980mmx4 | ||
| Bottom secondard beam 2 40x80mm | 1.5mm | 2980mmx5 | ||||
| 6 | corner fitting | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | ||
| 7 | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | |||

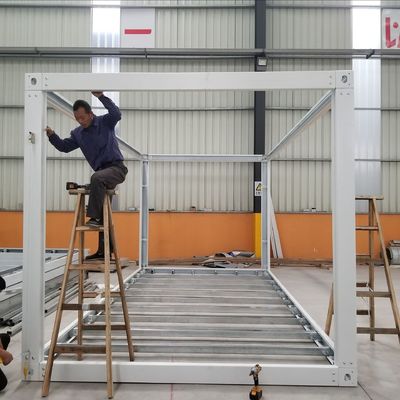

Detachable Container House Is Easy Assemble
Packing and Container Loading
One 40HQ can loading 16 units standard detachable container house, it's freight saving.
Detachable Container House Porject Reference
FAQ
Q1. Are you a factory or trading company?
A1. Foshan Desuman Building Materials Technology Co.,ltd. is a factory located in Nanhai district, Foshan City, Guangdong province, China.
Q2. What products you have?
A2. We have several products series, including: sandwich panels, modular house, container house, light steel villa, steel structure warehouse/ workshop, steel floor decking, etc…
Q3. How to install?
A3. We will provide installation instruction for you, technicians will be sent to help you if it is necessary. However, the visa fee, round plane tickets, accommodation fee, and wages will be provided by buyers.
Q4. How long is your delivery time?
A4. Generally it is within 2-30 days, definitely according to quantity and color.
Q5. How do you guarantee the quality of the products?
A5. Strict product quality control, quality makes the future. This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.
Q6. How can I get quotation of project?
A6. If you have drawing, we can offer you our quotation according to your drawing. If you have no design, we can make design according to your req- uirements and quote it, but will collect design fee first, once you place order the design fee can be deduct from the order amount.
