Product Details:
|
| Product Name: | S Type Connection Rock Wool Sandwich Panel | Width Of Wall Panel: | 950mm / 1150mm |
|---|---|---|---|
| Width Of Roof Panel: | 960mm / 1050mm | Length: | Customized , ≤11.8m |
| Thickness: | 50-200mm | Core Density: | 60-120kg/m3 |
| Steel Sheet Thickness: | 0.286-0.6mm | Application: | Apartment, Office Building, Hospital, School, Mall |
| Fireproof Grade: | A1 | Color: | Grey White,Red,Blue,Wooden Color,Brick Design Etc |
| Plac Of Origin: | Foshan,Guangdong,China | Certification: | ISO9001-2008 |
| Life Span: | 15-20 Years | ||
| High Light: | S Type Connection Side Rockwool Panel,Thermal Insulation Rockwool Sandwich Wall Panel,950mm Rockwool Sandwich Wall Panel |
||

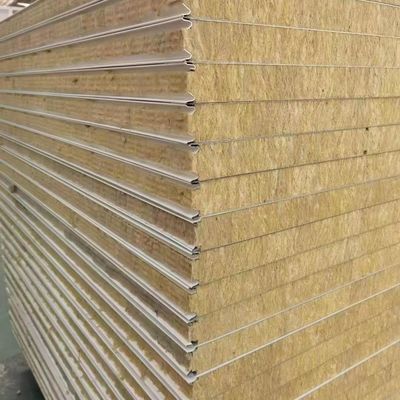

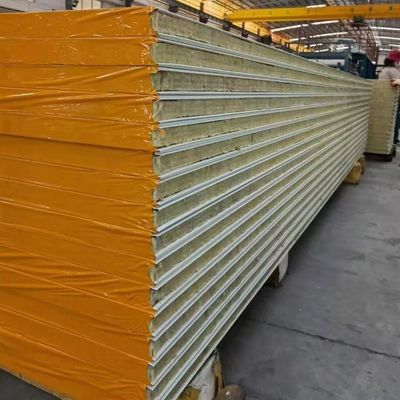

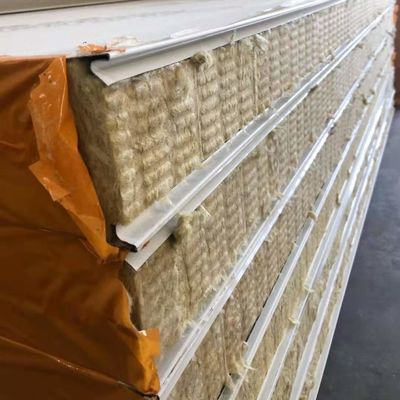

S Type Connection Side Rock Wool Sandwich Wall Panel With Good Insulation
sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction.
Product Description
|
Product Name
|
Rock Wool Sandwich Panel
|
|
Density of eps
|
60-120kg/m3
|
|
Effective width
|
950mm/1150mm For Wall Panel, 960mm/1050mm For Roof Panel
|
|
EPS core thickness
|
50mm,75mm,100mm,150mm,200mm
|
|
Steel thickness
|
normal:0.286-0.6mm
|
|
Length
|
According to customer's request, but if container transportation,normal less 11.8m
|
|
Color
|
China red,seablue,whitegrey,as customized
|
|
surface material
|
PPGI steel, GI steel ,PPGL steel ,GL steel,stainless steel
|
|
The thermal conductivity
|
0.038W/M.K
|
|
Water absorption
|
≤6%
|
|
The compression strength
|
≥69KPa
|
|
Fire proof
|
A1
|
|
Dimensional stability(70℃,48h)
|
≤5%
|
|
Application temperature
|
-20℃-75℃
|
|
Wall Grace finish
|
Embossment,big rib,flat finish
|
|
Package
|
standard seaworthy exporting package,plastic thin film package and Wooden pallets
|
|
Transport
|
By sea
|
Rock Wool Sandwich Panel is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, garage, shop, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
In the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials.

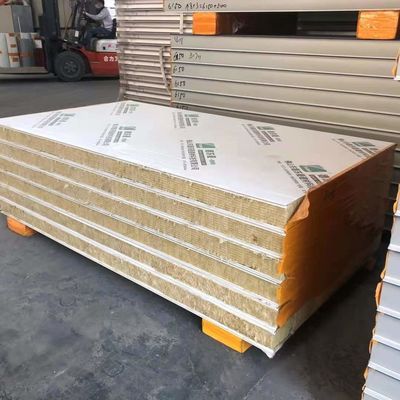

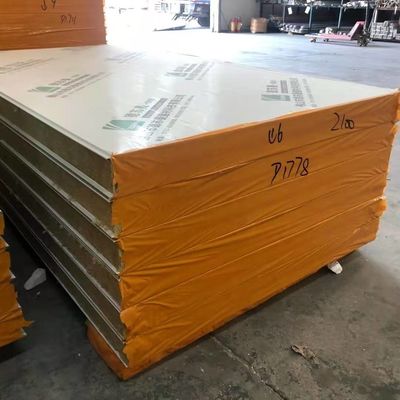

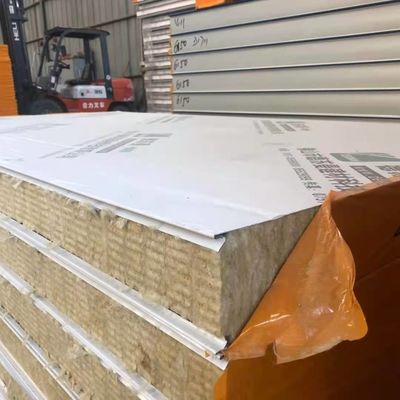

Packing & Loading Container
Our Company
Foshan Desuman Building Materials Technology Co.,Ltd .
We are a professional manufacturer of sandwich panel products and we have our own facotry and trade team .
We are engaged in designing, manufacturing, building and marketing for sandwich panel products , detachable container houses and pref-abricated houses. Our main products includes prefabricated house,modular house, steel structure warehouse and related construction products etc.
We have succeeded in passing ISO9001:2008 Enterprise Quality Management Authentication.
We could design and build living house,office building,dormitory and other residential & commercial constructions,achieving
perfect combination of industrial technique and social function.
We pay great attention to keep improvement to the current products, as well as developing new updating styles to satisfy the
market demand.We sincerely hope to join hands with our clients to create a better future in principle of win-win cooperation!
