Product Details:
|
Product Name: | PU Sandwich Panel Wall Cladding | Width Of Wall Panel: | 950mm / 1150mm |
---|---|---|---|
Width Of Roof Panel: | 960mm / 1050mm | Length: | Customized , ≤11.8m |
Thickness: | 30-200mm | Core Density: | 35-40kg/m3 |
Steel Sheet Thickness: | 0.286-0.6mm | Application: | Apartment, Office Building, Hospital, School, Mall |
Resistance: | Temperature From -40°c To +100°c | Thermal Conductivity: | 0.020 W(m.k) |
Fireproof Grade: | B1 / B2 | Color: | Grey White,Red,Blue,Wooden Color,Brick Design Etc |
Plac Of Origin: | Foshan,Guangdong,China | Certification: | ISO9001-2008 |
Life Span: | 20-30 Years | ||
High Light: | 50mm PU Sandwich Panel,75mm PU Sandwich Panel,75mm PUR Sandwich Panel |

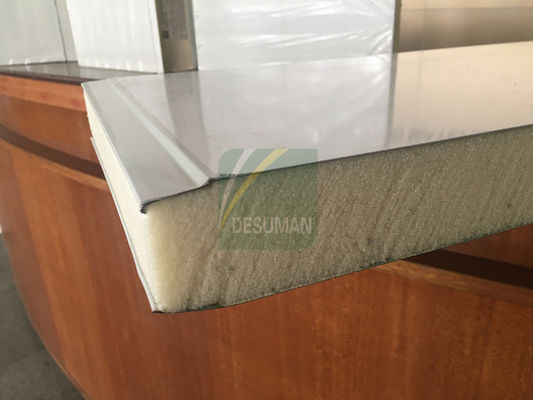

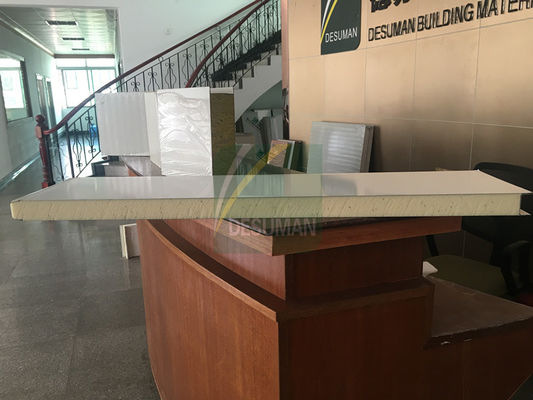

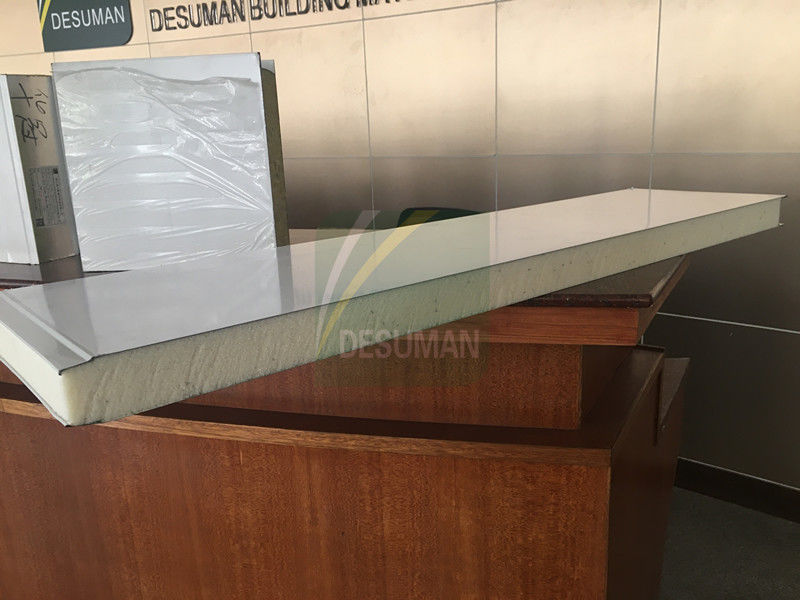

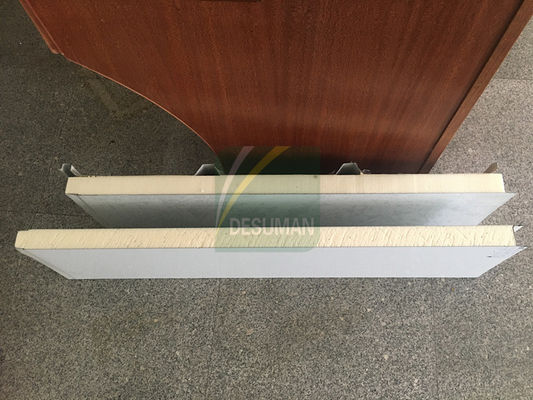

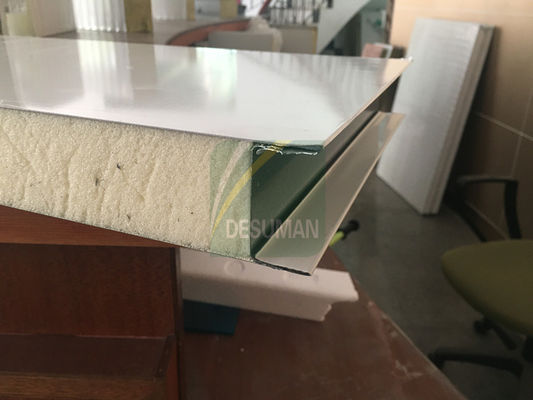

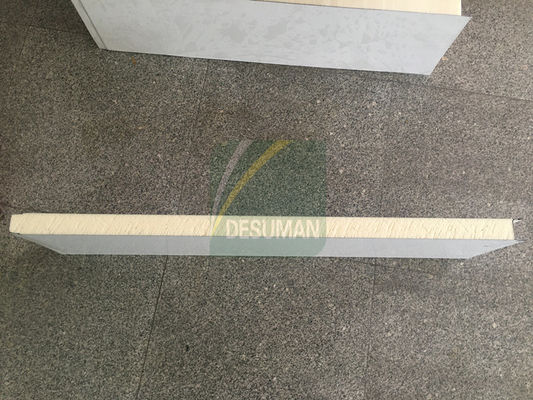

50mm 75mm Insulated Polyurethane PU Sandwich Panel Wall Cladding PUR Sandwich Board Panels
PUR Sandwich Panel is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, garage, shop, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
In the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials.
Product Description
Product Name
|
PUR(Polyurethane) Sandwich Panel
|
Density of eps
|
35-40kg/m3
|
Effective width
|
950mm/1150mm For Wall Panel, 960mm/1050mm For Roof Panel
|
EPS core thickness
|
50mm,75mm,100mm,150mm,200mm
|
Steel thickness
|
normal:0.286-0.6mm
|
Length
|
According to customer's request, but if container transportation,normal less 11.8m
|
Color
|
China red,seablue,whitegrey,as customized
|
surface material
|
PPGI steel, GI steel ,PPGL steel ,GL steel,stainless steel
|
The thermal conductivity
|
0.02W/M.K
|
Water absorption
|
≤6%
|
The compression strength
|
≥69KPa
|
Fire proof
|
B1 B2
|
Dimensional stability(70℃,48h)
|
≤5%
|
Application temperature
|
-40℃-100℃
|
Wall Grace finish
|
Embossment,big rib,flat finish
|
Package
|
standard seaworthy exporting package,plastic thin film package and Wooden pallets
|
Transport
|
By sea
|
Packing & Loading Container
