Prefabricated Building H Section Steel Structure Warehouse

Prefabricated Building H Section Steel Structure Warehouse
Prefabricated Building H Section Steel Structure Warehouse Prefabricated Building H Section Steel Structure Warehouse Prefabricated Building H Section Steel Structure Warehouse Prefabricated Building H Section Steel Structure Warehouse

Large Image :  Prefabricated Building H Section Steel Structure Warehouse

Product Details:
Place of Origin: China
Brand Name: Desuman
Certification: ISO9001-2008
Model Number: Steel structure workshop
Payment & Shipping Terms:
Minimum Order Quantity: 300 square meter
Price: To be Negotiated
Packaging Details: Sea worthy packing
Delivery Time: As per building dimensions
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 square meter per month

Prefabricated Building H Section Steel Structure Warehouse

Description
Product Name: Steel Structure Warehouse Dimension: Customized
Frame: H Section Steel Or Variable Section Steel Insulation: EPS, PU, Glass Wool, Rock Wool Or Single Color Steel Sheet
Purlin: C.Z Shape Steel Channel Standard: ASTM
Door: Roller Door Or Sliding Door Window: Aluminum Alloy Window, Pvc Window Or Shutter
High Light:

H Section Steel Structure Warehouse

,

ASTM Steel Structure Warehouse

,

Prefabricated Warehouse Building

Prefabricated Customized Design Steel Structure Warehouse Prefabricated Warehouse Building



Advantages



(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads



Specification



Items Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Finishing Options Vast array of colors and textures available
Paint Options Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.



Prefabricated Customized Design Steel Structure Warehouse



Steel structure warehouse has features of high fire resistance, strong corrosion resistance. Steel structure warehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.

The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall.

The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.



Prefabricated Building H Section Steel Structure Warehouse 0

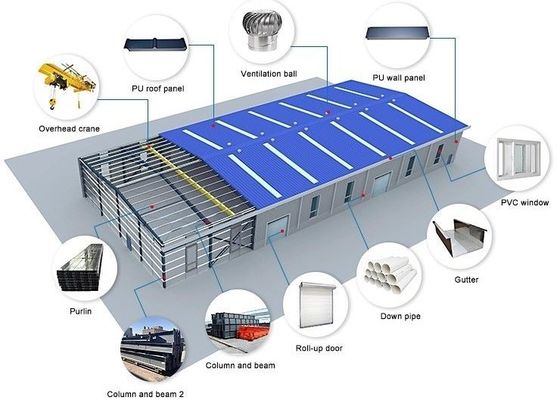

Main Materials Photo of Steel Structure Warehouse

Prefabricated Building H Section Steel Structure Warehouse 1

Processing Flows

We have professional welding team, who are well educated and have welding cerfiticate, most important is that Most of them have over 25 years working experiences.

Prefabricated Building H Section Steel Structure Warehouse 2



Steel Structure Warehouse Export Packing and Loading

Flat packed into 40'HQ or separate into 40'OT.



Prefabricated Building H Section Steel Structure Warehouse 3

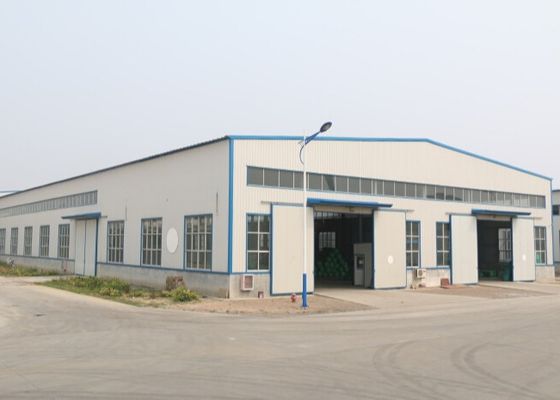

Reference Overseas Project Of Steel Structure Warehouse



Prefabricated Building H Section Steel Structure Warehouse 4



Desuman Factory Informations



Prefabricated Building H Section Steel Structure Warehouse 5

Prefabricated Building H Section Steel Structure Warehouse 6

Prefabricated Building H Section Steel Structure Warehouse 7



FAQ

Q1: You are manufacture factory or trading company?

A: We are manufacture factory. And you are welcomed to visit us at any time for inspection. The quality control flow and sales team will show you our professionalism. Also, you will get best and most competitive price after visiting us.

Q2: What the quality assurance you provided and how do you control quality?

A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials,validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us. We could deal with you by Trade Assurance via Alibaba.

Q3: Is your price competitive compared with other companies?

A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.

Q4: Can you send engineers or whole team to install my project?

A: Yes, we will send you the detailed installation drawing and video for free, we can provide the service of installation,
supervision, and training by extra. We can send our professional technical team to supervise installation on site overseas.

Q5: Do you accept container loading inspection?

A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.

Q6: Do you offer designing service for us?

A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) etc., we can design complex industrial building like office mansion, super marker, auto dealer shop,
shipping mall, 5 stars hotel.

Q7: What is the delivery time?

A: Delivery time depends on order quantities. In general, the delivery time to nearest seaport in China will be 30 days after receiving deposit.

Q8: How can you get a quotation for your projects?

A: You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.

Q9: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers’ team will provide you the suitable solution according to your requirements.
Proposal drawing, 3D drawing, Materials’ photos, finished projects photos are available, which will help you understand the
solution we provided deeply.
