Product Details:
|
| Product Name: | Container Countryside House | Dimensions: | 5950mm(L) * 3000mm(W) * 2800mm(H) |
|---|---|---|---|
| Instulationdwich Panel, Rock Wool Sandwich Panel, PU Sandwich Panel: | Fireproof Rock Wool Sandwich Panel | Door: | Steel Composite Door |
| Window: | Aluminum Sliding Window With Burglar Mesh | Structure Color: | White / Red / Blue / Iron Grey / Green / Orange |
| Loading: | 15 Units/40HC | Use: | Office, Labor Camp, Domitory, Family House,Warehouse, |
| Life Span: | 15-20 Years | Design: | Standard Size & Standard Design |
| High Light: | Countryside Container Living Homes,40HC Shipping Container Family Home,2800mm Shipping Container Family Home |
||
Family Living Design Container Countryside House
Family Living Design Container Countryside House is a new generation of prefab house. It is a whole unit itself. Which can be use as single portable house. or combined laterally or place with layers. Detachable container house can be connected by bolts, with easy installation and fast transportation. Detachable container house is widely use for office, labor camp, modular hospital,resettlement housing,farming, etc

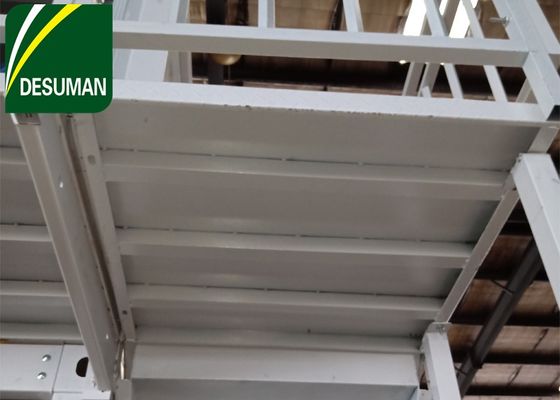

Main Frame of Family Living Design Container Countryside House
| No. | Component Name | Materials | Thickness | specifications(mm) | ||
| 1 | Pillar | Cold formed galvanized steel plate | 2.5mm | 2480mmx4 | ||
| 2 | Top beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 3 | Bottom beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 4 | Side beams | Cold formed galvanized steel plate | 2.5mm | 2680mmx4 | ||
| 5 | floor purlin | Bottom secondard beam 1 80x80mm |
1.5mm | 2980mmx4 | ||
| Bottom secondard beam 2 40x80mm |
1.5mm | 2980mmx5 | ||||
| 6 | corner fitting | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | ||
| 7 | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | |||
Technical Information Of Family Living Design Container Countryside House
| Technical Parameter | ||||||
| No. | Iitem | Parameter | No. | Iitem | Parameter | |
| 1 | Roof load | ≧0.5KN/㎡ | 6 | Wall deformation | ≦300kilograms/m2 | |
| 2 | Flooring load | ≧2.5KN/㎡ | 7 | Seismic grade | 9-magnitude | |
| 3 | Aisle load | ≧2.5KN/㎡ | 8 | Wind loading | 12 level of wind loading | |
| 4 | Wall side stress | ≧1.8KN/㎡ | 9 | Interior dimension | 5800x2850x2600mm | |
| 5 | Fire proof | A Grade | 10 | Service life of structural design | ≧15 Years | |
Packing and Loading

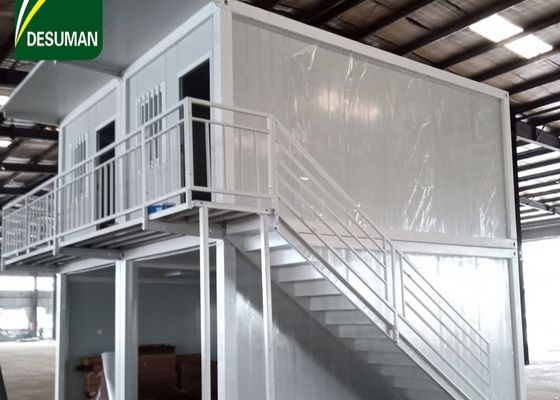

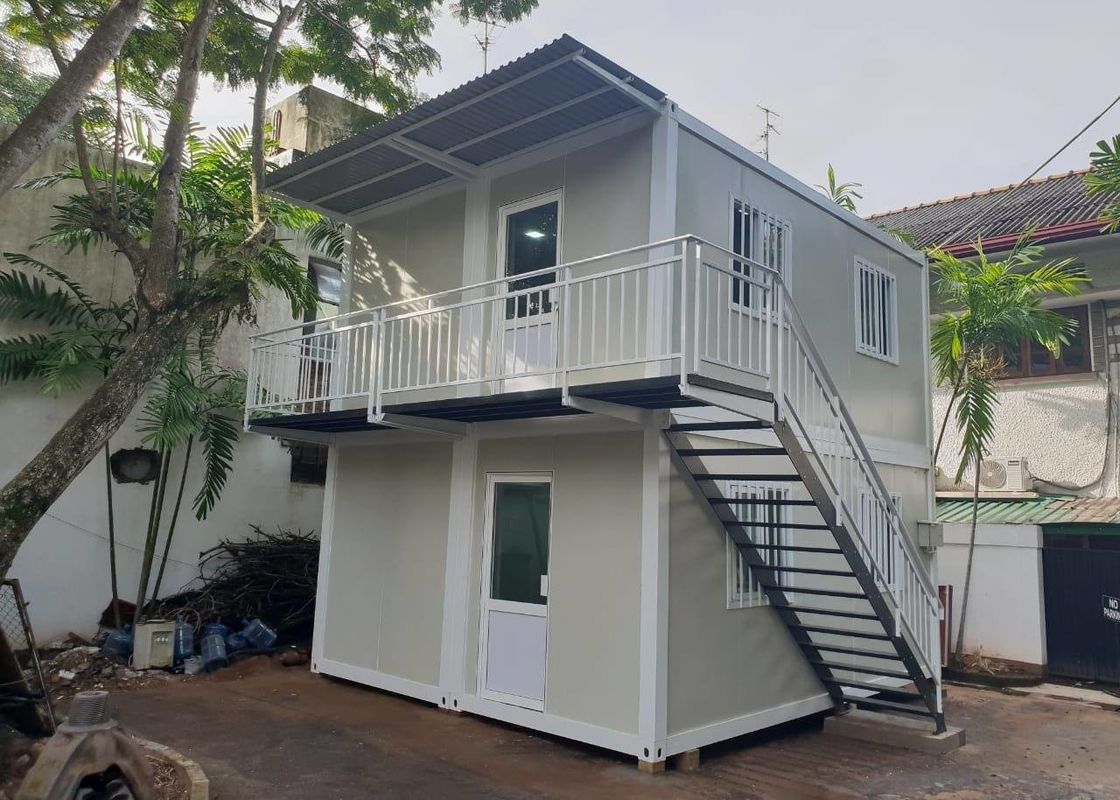

Reference Project Case
Desuman Factory Information
FAQ
Q1. Are you a factory or trading company?
A1. Foshan Desuman Building Materials Technology Co.,ltd. is a factory located in Nanhai district, Foshan City, Guangdong province, China.
Q2. What products you have?
A2. We have several products series, including: sandwich panels, modular house, container house, light steel villa, steel structure warehouse/ workshop, steel floor decking, etc…
Q3. How to install?
A3. We will provide installation instruction for you, technicians will be sent to help you if it is necessary. However, the visa fee, round plane tickets, accommodation fee, and wages will be provided by buyers.
Q4. How long is your delivery time?
A4. Generally it is within 2-30 days, definitely according to quantity and color.
Q5. How do you guarantee the quality of the products?
A5. Strict product quality control, quality makes the future. This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.
Q6. How can I get quotation of project?
A6. If you have drawing, we can offer you our quotation according to your drawing. If you have no design, we can make design according to your req- uirements and quote it, but will collect design fee first, once you place order the design fee can be deduct from the order amount.
