Product Details:
|
Product Name: | Silica Polystyrene Color Steel Sandwich Panel | Brand: | Desuman |
---|---|---|---|
Exterior Finishing: | PPGI, Stainless Steel, Galvanized Steel Sheet | Core Material: | EPS Foam |
Thickness: | 50mm, 100mm, 125mm, 150mm, 200mm... | Width: | 950mm / 1150mm |
EPS Density: | 8kg/m³,10kg/m³,12kg/m³,14kg/m³,16kg/m³,18kg/m³,20kg/m³ | Color: | Sea Blue, Sky Blue, Off White, Ivory White, Lotus Green, Bright Red, Or Customized Color |
High Light: | Fireproof Silica Rock Sandwich Panel,ISO Silica Rock Sandwich Panel,Silica Cleanroom Sandwich Panel |

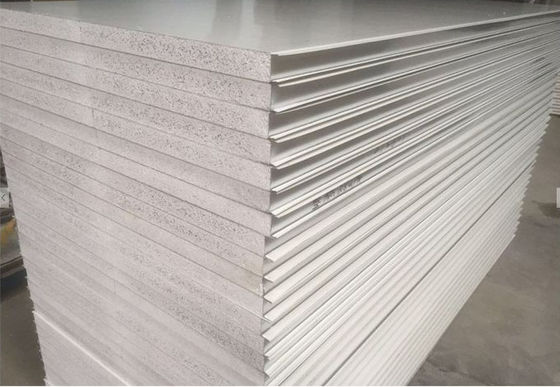

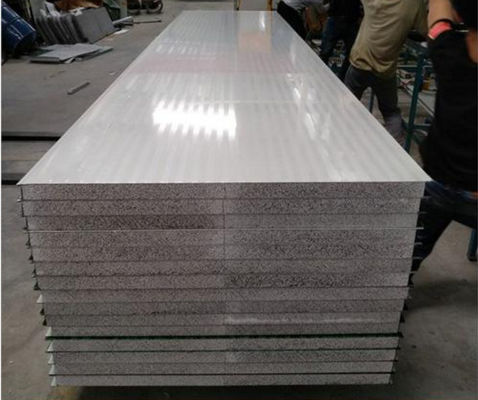

Fire Proof Silica Polystyrene Color Steel Sandwich Panel Use For Clean Room Wall Panel

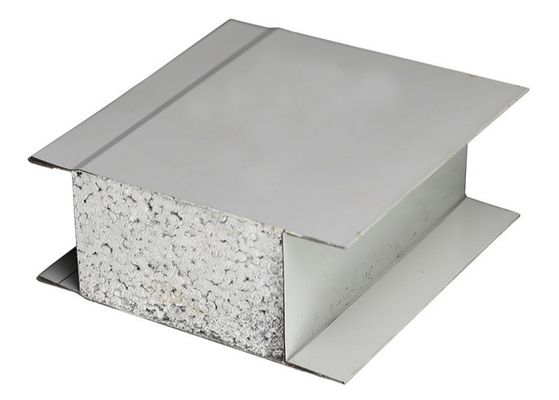

Silica Polystyrene Color Steel Sandwich Panel is a light weight building board made from two outer layers of steel plates and a inner layer of Silica Polystyrene mixture, which are then heated and pressurized by computer controlled color steel forming machine. It is an integration of load-bearing, heat insulation, fireproof, waterproof, and also finishing free. It is a widely used and reflects the civility of modern construction sites, especially in temporary housing at construction sites (such as offices, warehouses, fences, etc.,). It has obvious advantages, especially in quick installation, assembly and disassembly and recyclability, which can reduce temporary housing costs.
Features:
1. Good Thermal Insulation, an energy saving material
2. Good Fire Resistance: B1 grade for total panel

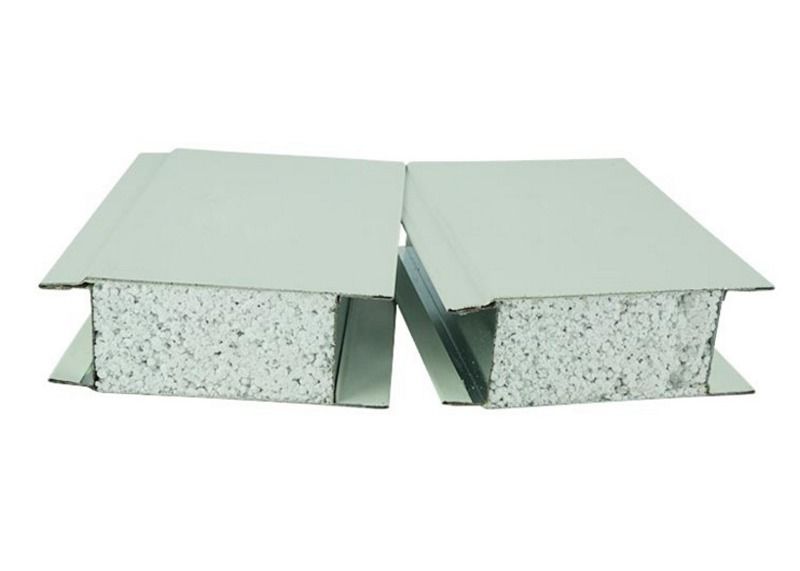

3. Special Connection Design: Screw concealed connection
4. Graceful Finish: embossment, small wave, big rib and flat finish
5. Advance Machine: The longest main machine
6. Strict Workshop Management: TMP-5S management system
7. Raw Material: Only quality steel is selected.
8. Strict Quality Control: ISO9001-2008 certification
9. Wide Usage: Used as roof and wall in workshop and warehouse.
EPS Sandwich Panel Specificatoin:
Panel Thickness | Wall Panel | 50mm, 75mm, 100mm, 125mm, 150mm, 200mm |
Roof panel | 50mm, 75mm, 100mm, 125mm, 150mm | |
Panel width | Wall Panel | 950mm or 1150mm |
Roof panel | 960mm or 1050mm | |
Panel Length | Wall / Roof | no limited, but it's better no longer than 12m for transport limit. |
External steel thickness | 0.286mm, 0.326mm, 0376mm, 0.426mm, 0.476mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm | |
EPS foam density | 40kg/m³, 60kg/m³, 80kg/m³ |
Silica Polystyrene Color Steel Sandwich Panel Applications:
1. Prefabricated House
2. Container house
3. Clean room
4. steel structure warehouse / workshop
5. Hospital
6. Building internal partation
Sandwich Panel Color Sheets

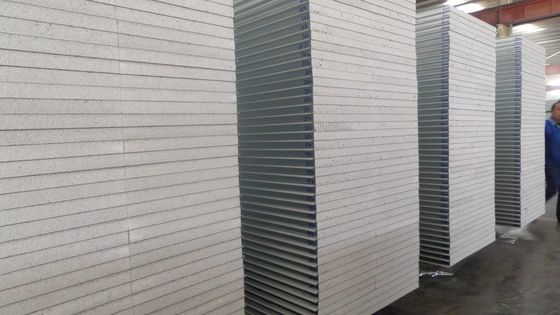

Silica Polystyrene Color Steel Sandwich Panel Packing and Container Loading
