Product Details:
|
Product Name: | K Type House For Temporary Hospital Use | Application: | Dormitory,Office,Warehouse,Workshop,Hospital |
---|---|---|---|
Steel Structure: | Galvanized #C Steel Structure | Color Of Structure: | Grey White/Red/Blue |
Wall And Roof Panel: | EPS/Rock Wool/Glass Wool Sandwich Panel | Size: | 5.62 M*3.64 M |
After-sale Service: | Online Technical Support | Earthquake Resistance: | 8 Grade |
Other Fitting: | Shower Room, Toilet, Kitchen, Carridor | Window: | PVC Sliding Window With Insect Screen |
Door: | Sandwich Panel Door | Life Span: | 10-20 Years |
High Light: | Prefabricated K Type House,Hospital Modular Prefabricated House,ISO Modular Prefabricated House |

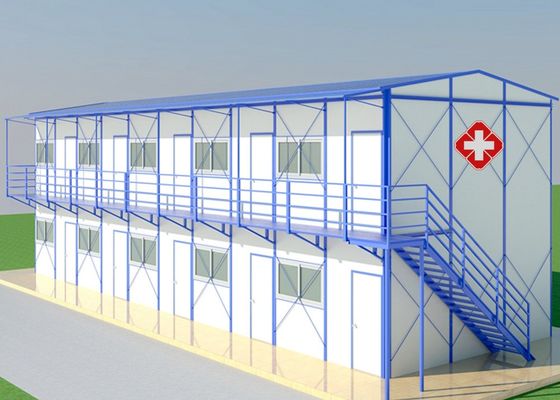

Low Cost Prefabricated House K Type House For Temporary Hospital Use
Product Name | Double Story Fast Assembly Steel Frame K Type Prefabricated House Temporary House |
Structure | Steel +sandwich panel |
Main frame | C Purlin, Channel Steel, Square Pipe |
Roof and wall |
1) EPS Sandwich Panel; 2) Glass Fiber Sandwich Panel; 3) Rock Wool Sandwich Panel; 4) Steel Sheet |
Door | Sandwich Panel Door / Steel door |
Window | Aluminiumn Alloy Window/PVC Window |
Down spout | Natural falling water/Round pvc pipe |
Live load on Roof | In 150kg/Sqm (Color steel panel surrounded) |
Wind Resistance Grade | 11 Grades |
Earthquake-resistance | 8 Grades |
Usage | Residential, dormitory and toilet, warehouse, workshop and other temporary facilities |
Standard specification of K type prefab house
mK * nK * uP (1K=1820mm, 1P=950mm)
No. | Width | Length | Height | ||
1 | 3K | 4K | 3P | 6P | 9P |
2 | 4K | 5K | 3P | 6P | 9P |
3 | 5K | 6K | 3P | 6P | 9P |
4 | 6K | 7K | 3P | 6P | 9P |
Explanation:
1. The two floors’ house has two pcs stair in standard. Each side ofgable wall has one. The stair’s area is 4.5m²/pc. The three floor stair
is 16m²/pc.The area will increase or reduce according the stair’squantity.
2. The regular of area counting way:
1).The house area: Exterior wall length ×exterior wall width×floornumber.
2). Standard stair: 4.5m²/pc, corner stair (special for three floorshouse): 16m²/pc.
3). Awning area: house shadow area ×0.5.
4). Aisle board area: house shadow area.
5). Total area=1+2+3+4
6). Expect the no standard house, this regular is suitable for all thehouse.
7). Above regular also is fit for the flat style house.
Advantage:
1. Flexible combination,modular house can be easily combined,time and labor saving.
2. Easy assembly. We provide install drawing and video.
3. Good insulation. It can suffer extreme climate.
4. Good looking and neat inside.
5. Good resistance for water,wind and earthquake.
6. long lifespan 10-20 years.
FAQ:
Q: Are you a factory or trading Company?
A: We are manufacturer with 8 years experience in prefab house/container house/sandwich panel.
Q: How about your delivery time?
A: The delivery time for Prefab house need around 7-15 days.
Q: What’s the minimum order?
A: Prefab house: 180 m2, Container house: 3unites, Steel structure: 200 m2.
Q: What’s your package?
A: They will be loaded into shipping containers in bulk with suitable safety package.
Q: How we assemble the house?
A: We will provide customers installation video or installation instruction. We also can arrange technicians to help customers if necessary.
