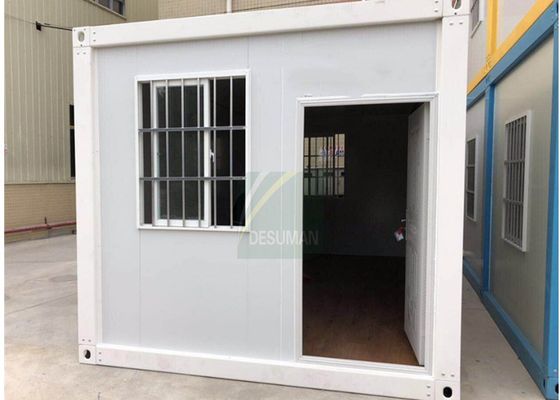

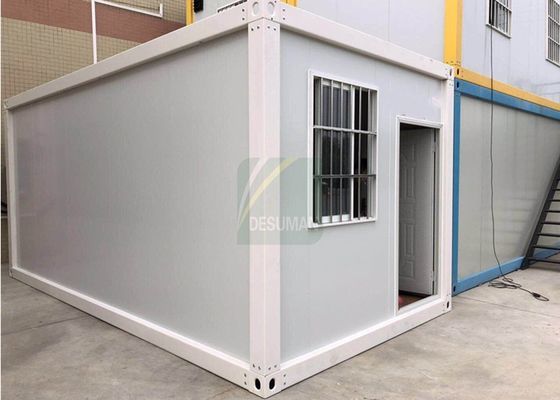

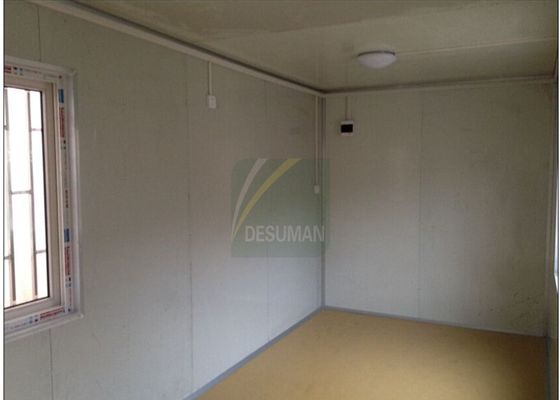

Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House

Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House
Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House

Large Image :  Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House

Product Details:
Place of Origin: China
Brand Name: Desuman
Certification: ISO9001-2008
Model Number: Detachable container house
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiated
Packaging Details: Plastic Membrane Packing
Delivery Time: 7-14 Days
Payment Terms: L/C, T/T
Supply Ability: 500 units per month

Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House

Description
Product Name: Iron Grey Color Steel Frame Detachable Container House Dimensions: 5950mm(L) * 3000mm(W) * 2800mm(H)
Instulationdwich Panel, Rock Wool Sandwich Panel, PU Sandwich Panel: Fireproof Rock Wool Sandwich Panel Door: Steel Composite Door
Window: Aluminum Sliding Window With Burglar Mesh Structure Color: White / Red / Blue / Iron Grey / Green / Orange
Loading: 15 Units/40HC Use: Office, Labor Camp, Domitory, Family House,Warehouse,
Life Span: 15-20 Years Design: Standard Size & Standard Design
High Light:

Iron Grey Detachable Container House

,

ISO Iron Grey Detachable Container House

,

40HC Steel Frame Container House



Iron Grey Color Steel Frame Detachable Container House Grey Color Sandwich Panel Container House For Sale



Iron Grey Color Steel Frame Detachable Container House is a new generation of prefab house. It is a whole unit itself. Which can be use as single portable house. or combined laterally or place with layers. Detachable container house can be connected by bolts, with easy installation and fast transportation. Detachable container house is widely use for office, labor camp, modular hospital,resettlement housing,farming, etc....



Main Frame of Iron Grey Color Steel Frame Detachable Container House





No. Component Name Materials Thickness specifications(mm)
1 Pillar Cold formed galvanized steel plate 2.5mm 2480mmx4
2 Top beam Cold formed galvanized steel plate 2.5mm 5630mmx2
3 Bottom beam Cold formed galvanized steel plate 2.5mm 5630mmx2
4 Side beams Cold formed galvanized steel plate 2.5mm 2680mmx4
5 floor purlin Bottom secondard beam 1
80x80mm
1.5mm 2980mmx4
Bottom secondard beam 2
40x80mm
1.5mm 2980mmx5
6 corner fitting Steel corner fitting(Top) 5mm 160mm*160*5mm
7 Steel corner fitting(Top) 5mm 160mm*160*5mm



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 0



Technical  Information Of Iron Grey Color Steel Frame Detachable Container House



Technical Parameter
No. Iitem Parameter No. Iitem Parameter
1 Roof load ≧0.5KN/㎡ 6 Wall deformation ≦300kilograms/m2
2 Flooring load ≧2.5KN/㎡ 7 Seismic grade 9-magnitude
3 Aisle load ≧2.5KN/㎡ 8 Wind loading 12 level of wind loading
4 Wall side stress ≧1.8KN/㎡ 9 Interior dimension 5800x2850x2600mm
5 Fire proof A Grade 10 Service life of structural design ≧15 Years







Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 1



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 2



Packing and Loading



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 3



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 4



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 5



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 6

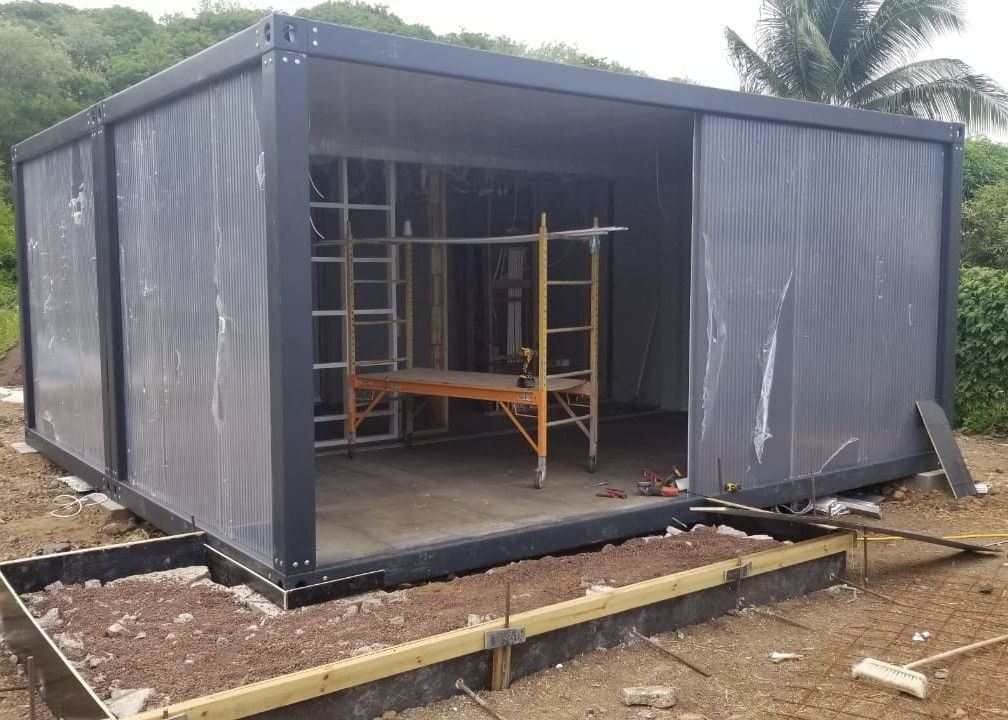

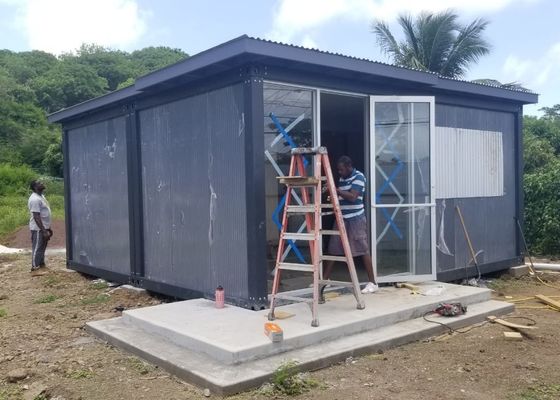

Reference Project Case



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 7



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 8



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 9





Desuman Factory Information



Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 10

Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 11

Grey Iron Grey Steel Frame Detachable Sandwich Panel Container House 12



FAQ



Q1. Are you a factory or trading company?

A1. Foshan Desuman Building Materials Technology Co.,ltd. is a factory located in Nanhai district, Foshan City, Guangdong province, China.

Q2. What products you have?

A2. We have several products series, including: sandwich panels, modular house, container house, light steel villa, steel structure warehouse/ workshop, steel floor decking, etc…

Q3. How to install?

A3. We will provide installation instruction for you, technicians will be sent to help you if it is necessary. However, the visa fee, round plane tickets, accommodation fee, and wages will be provided by buyers.

Q4. How long is your delivery time?

A4. Generally it is within 2-30 days, definitely according to quantity and color.

Q5. How do you guarantee the quality of the products?

A5. Strict product quality control, quality makes the future. This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.

Q6. How can I get quotation of project?

A6. If you have drawing, we can offer you our quotation according to your drawing. If you have no design, we can make design according to your req- uirements and quote it, but will collect design fee first, once you place order the design fee can be deduct from the order amount.
