Product Details:
|
Product Name: | Steel Structure Workshop Building | Dimension: | Customized |
---|---|---|---|
Frame: | H Section Steel Or Variable Section Steel | Insulation: | EPS, PU, Glass Wool, Rock Wool Or Single Color Steel Sheet |
Door: | Roller Door Or Sliding Door | Window: | Aluminum Alloy Window, Pvc Window Or Shutter |
Surface Treatment: | Anti-rust Painting | Color: | Optional |
High Light: | Glass Wool Prefab Insulated Workshop,Lightweight Steel Structure Workshop,Glass Wool Steel Structure Workshop |
Low Cost Construction Design Steel Metal Structure Building Plans Price Prefabricated Warehouse

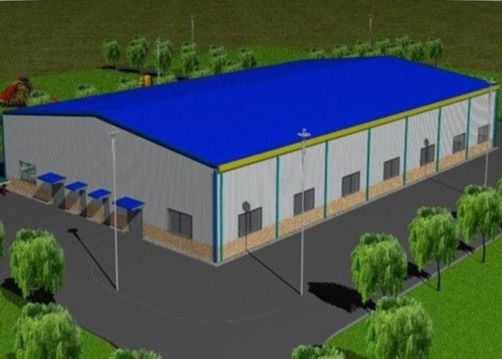

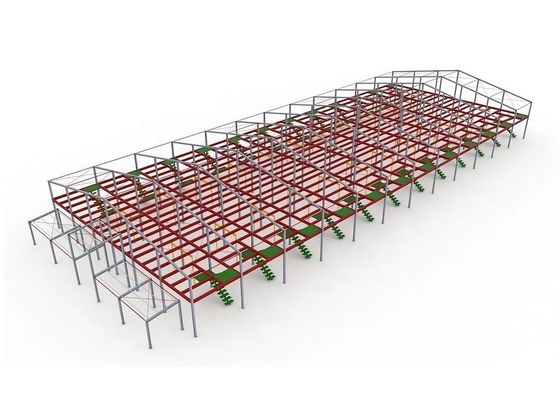

Steel structure workshop is a popular type of building system now, its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.

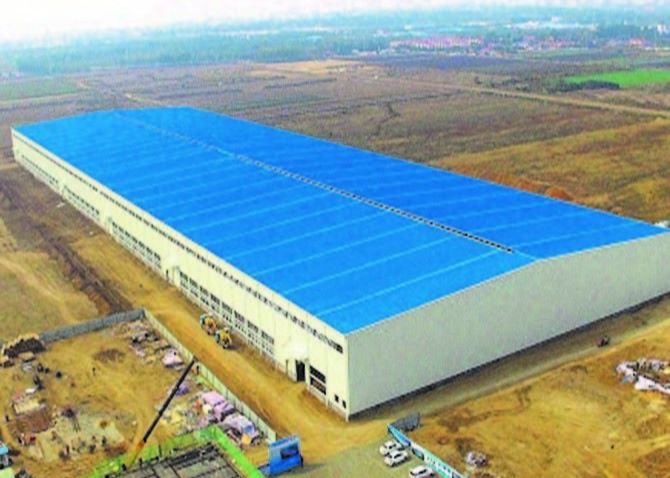

long span steel structure factory and construction design steel structure warehouse
steel structure warehouse / house / shed / workshop / car garage /hangar / factory / poultry farmSteel Structure Warehouse / Workshop and steel structure home
Steel structure building as workshop, warehouse , storage shed and prefab house , office room, etc...
A: Components of galvanized light steel structure
1)Wall panel: sandwich panel with color steel two sides and EPS foam filling width:1200mm 1k=1200
2)Column: C style steel, H shape
3)Floor beam: C style steel,200*40*2.0mm
4)Floor: light magnesium board (our patent)
5)Stair: metal
6)Roof truss: angle steel
7)Purling tube metal
8)Roof panel: corrugated sandwich panel with color steel two sides
9)Door: aluminum frame with panel same as wall, with lock
Remark: this list is for your reference but the elements can vary.
Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2
Advantages
(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads

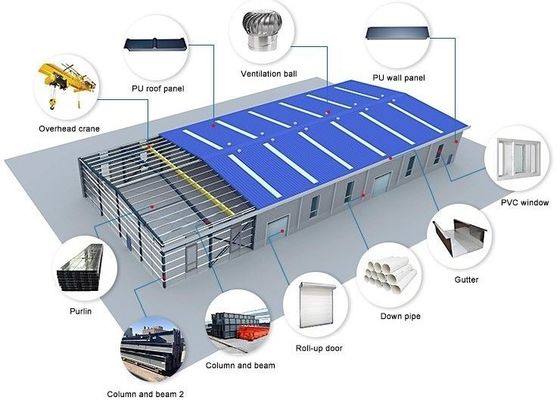

Main Pars
|
Item Name
|
Specification
|

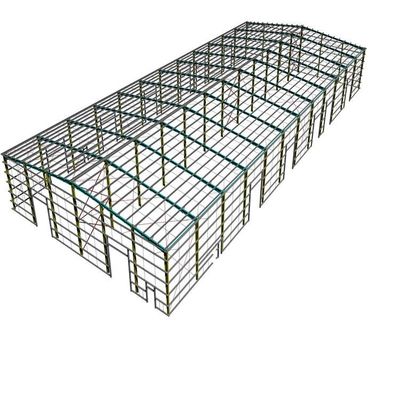

Main Stell Frame
|
Stell Column
|
H shape,Box,Steel pipe,Hot rolled sheet
|
Stell Beam
|
Q235B,Q345B
Steel rod,Steel pipe,Angel steel |
|
Supporting System
|
Brace
|
C or Z shape,Steeln purlin
|
RoofPurlin
|
Q235B,Q345B
|
|
Wall Purlin
|
C or Z shape,Steeln purlin
|
|
Roof
|
Singel colorful corrugate steel sheet,Sandwich panel with EPS,Rock wool,PU,Glass wool etc.
|
|
Wall
|
Singel colorful corrugate steel sheet,Sandwich panel with EPS,Rock wool,PU,Glass wool etc.
|
|
Accessories
|
Bolts
|
Ordinary,High strength
|
Gutter
|
Galvanized Steel plate,Stainless steel
|
|
Windows
|
Aluminum alloy-Glass,Aluminnum alloy-shutter,PVC
|
|
Doors
|
Sliding or Rolling door
|
|
Downpipes
|
PVC pipe,Color steel pipe
|
|
Edge Cover
|
Made of color steel sheet thickness 0.5mm
|
|
Ventilator
|
Stainless steel
|
|
Crane
|
Crane in 5 tons to 20 tons
|
Main Material Photos of Steel Structure Workshop
