Product Details:
|
| Product Name: | Detachable Container House | Size: | L 5950* W 3000*H 2800 Mm |
|---|---|---|---|
| Wall And Roof Panel: | Eps/glass Wool/rock Wool/pu Sandwich Panel | Door: | Steel Composite Door |
| Window: | Aluminum Sliding Window With Burglar Mesh | Structure Color: | White / Red / Blue / Iron Grey / Green / Orange |
| Panel Thickness: | 50 Mm | Use: | Office, Labor Camp, Domitory, Family House,Warehouse, |
| Lifetime: | More Than 20 Years | Loading Quantity: | 5 Units/20gp 15 Units/40hq |
| High Light: | Modular Detachable Container House,ISO Detachable Container House,20gp Detachable Container House |
||

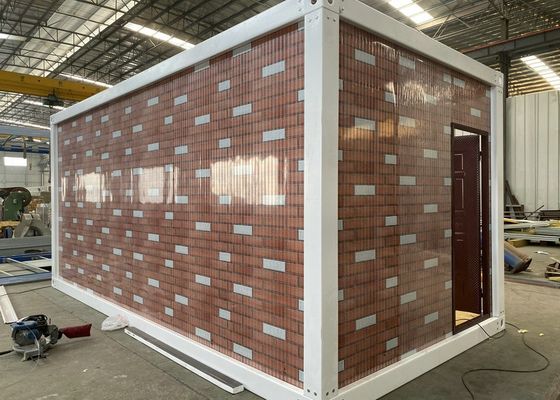

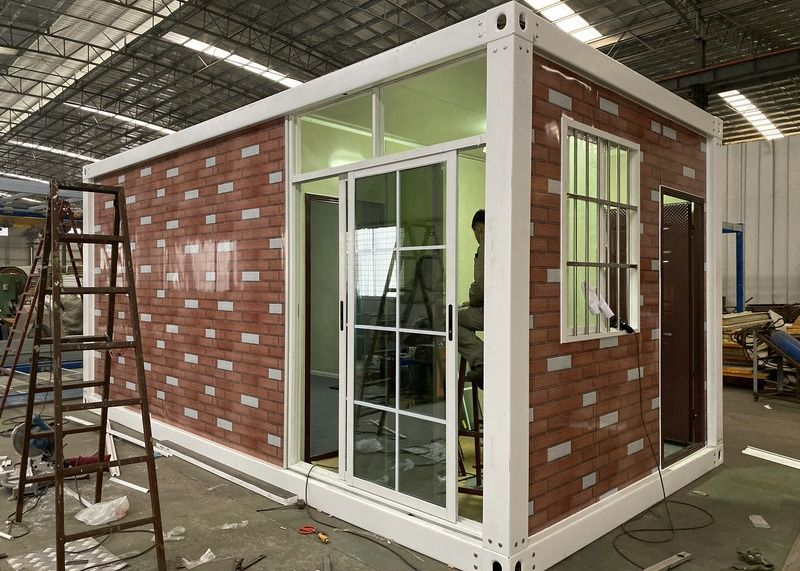

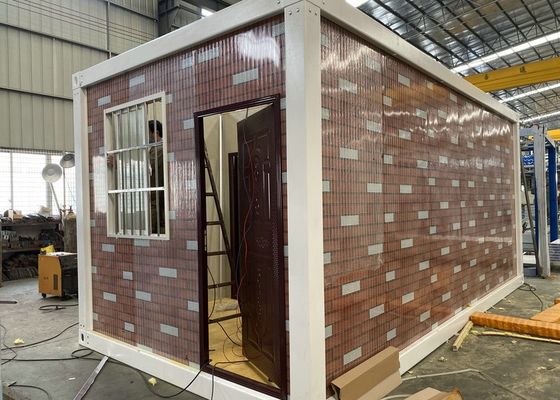

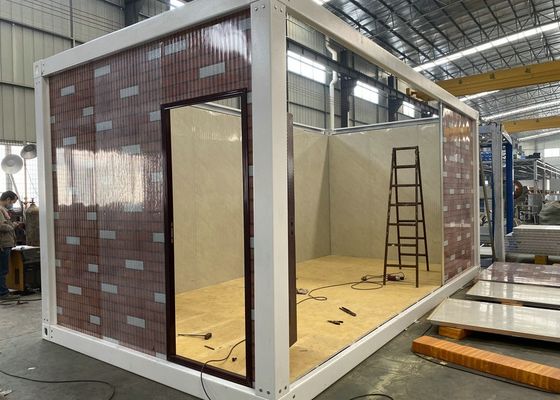

China Homes Designs Modular House Prefabricated House Detachable Container House
Advantage! !!
1.Fireproof and strong insulation performance.
2.Shockproof.
3.Wind resistnat.
4.Easy to install.
5.Strong weather resistance.
6.Can be re-used long life.
7.Can be combined randomly.
Main Frame Of Detachable Container House
| No. | Component Name | Materials | Thickness | specifications(mm) | ||
| 1 | Pillar | Cold formed galvanized steel plate | 2.5mm | 2480mmx4 | ||
| 2 | Top beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 3 | Bottom beam | Cold formed galvanized steel plate | 2.5mm | 5630mmx2 | ||
| 4 | Side beams | Cold formed galvanized steel plate | 2.5mm | 2680mmx4 | ||
| 5 | floor purlin | Bottom secondard beam 1 80x80mm |
1.5mm | 2980mmx4 | ||
| Bottom secondard beam 2 40x80mm |
1.5mm | 2980mmx5 | ||||
| 6 | corner fitting | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | ||
| 7 | Steel corner fitting(Top) | 5mm | 160mm*160*5mm | |||
Component Of The Detachable Container House
Detail Information Of The Detachable Container House
| Name | China Homes Designs Modular House Prefabricated House Detachable Container House | |
| Specificartion | Length(mm) | 5950 |
| Width(mm) | 3000 | |
| High(mm) | 2800 | |
| Roof | Flat roof | |
| The layer munber | 3 layer or less | |
| Design patrameter | Years of use of structural design | More than 20 years |
| Wall deformation | 300kilograms/m2 | |
| Seismic grade | 10-magnitude | |
| Wind loading | 12 level of wind loading | |
| Interior dimension | 5800x2850x2600mm | |
| Technical Parameter | Roof load | 0.5KN/m2 |
| Flooring load | 2.5KN/m2 | |
| Aisle load | 2.5KN/m2 | |
| Wall side stress | 1.8KN/m2 | |
| Fire proof | A Grade | |
| Wall |
EPS/Glass wool/Rock wool/Pu sandwich panel Thickness:50 mm |
|
| Door | Steel security door/Sandwich panel door | |
| Window | Aluminum window and the PVC window, single or double glass | |
| Loading |
5 units per 20gp 15 units per 40HQ |
|
| Install time | 3 workers 2 housrs | |
| Delivery time | About 6-12 working days | |
| Container house can be use for office,living place,dormitory,show room,cafe shop,store,movable toilet,shower room,temporary receoption center,product show room,echibition hall and so on. | ||
Packing and Loading
Our Project
Desuman Factory Information
FAQ
Q1. Are you a factory or trading company?
A1. Foshan Desuman Building Materials Technology Co.,ltd. is a factory located in Nanhai district, Foshan City, Guangdong province, China.
Q2. What products you have?
A2. We have several products series, including: sandwich panels, modular house, container house, light steel villa, steel structure warehouse/ workshop, steel floor decking, etc…
Q3. How to install?
A3. We will provide installation instruction for you, technicians will be sent to help you if it is necessary. However, the visa fee, round plane tickets, accommodation fee, and wages will be provided by buyers.
Q4. How long is your delivery time?
A4. Generally it is within 2-30 days, definitely according to quantity and color.
Q5. How do you guarantee the quality of the products?
A5. Strict product quality control, quality makes the future. This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.
Q6. How can I get quotation of project?
A6. If you have drawing, we can offer you our quotation according to your drawing. If you have no design, we can make design according to your req- uirements and quote it, but will collect design fee first, once you place order the design fee can be deduct from the order amount.
Contact Person: Mr. Jackson Yang
Tel: 86-18125760018
Fax: 86-757-85596444
